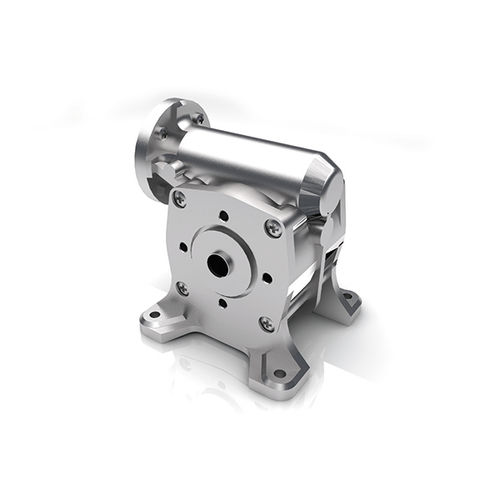

Worm gear reducer SG 120 Hright angle1 - 5 Nm10 - 20 Nm
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Torque
- 1 - 5 Nm, 10 - 20 Nm, 5 - 10 Nm
Description
» Housing made of high-tensile die-cast
» Output shaft with ball bearings on both sides, shaft output to the left
» Shaft output to the right or double shaft output on demand
» With worm gear available
» Hollow shaft version on demand
Gear ratio - 5 : 1
Number of stages:1
Nominal output torque Ncm:800
Max. efficiency - %:70
Max. axial load - N:300
Max. radial load - N:500
