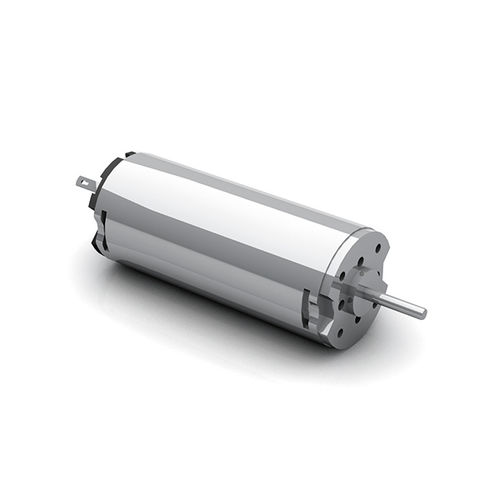

DC motor GR 30.0brushed24 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 24 V, 12 V
- Protection class
- maintenance-free, robust
- Configuration
- permanent magnet
- Power
Min.: 13 W
(0.018 hp)Max.: 15.8 W
(0.021 hp)- Torque
3 Nm, 3.7 Nm
(2.2127 ft.lb, 2.729 ft.lb)- Rotational speed
Min.: 2,500 rpm
(15,707.96 rad.min-1)Max.: 3,030 rpm
(19,038.05 rad.min-1)
Description
» Stronger permanent magnet DC motor
» Mechanical commutation through multi bar commutator provides long lifetime
» Operation in both directions of rotation
» Ball bearing at motor output shaft is standard
» Optionally with ball bearing on both sides, shaft on both sides, custom shaft length and diameter, lead version, special winding
Nominal voltage - V:12
Nominal current - A:1.4
Nominal torque - Ncm:3
Nominal speed - rpm:2980
Friction torque at no load Ncm:0.5
Peak stall torque Ncm:12.9
No load speed rpm:4130
Maximum output power W:13.93
Nominal power W:9.4
Torque constant - Ncm/A:2.88
Terminal resistance Ohm:2.61
Terminal inductance mH:2.61
Starting current - A:4.6
No load current - A:0.25
Demagnetisation current A:11.5
Rotor inertia gcm^2:42.2
Weight kg:0.24
