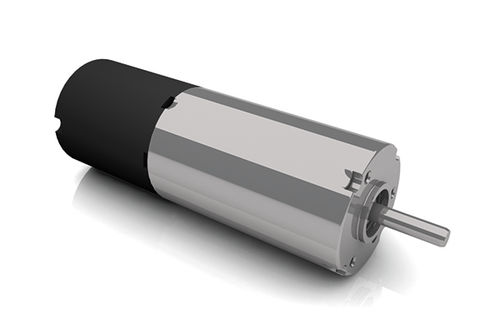

3-phase motor BGA 22x22 dGo

BLDC24 V12 V

» 3-phase BLDC motor with high-quality rare earth-magnets and integrated commutation electronics » DC voltage is supplied via 2-wires » We distinguish between the 2-/3-wire-version with reverse polarity (bipolar) and the 6-wireversion with inputs for start/stop, cw/ccw and speed set (PWM 500..5000Hz or Analogue 0..10V) » With pulse output for speed » High power density and overload capability » Weight-optimized motor design » No cogging torque/ coreless design » Low noise level » This motor is on request available in different voltage versions Nominal voltage - V 24 Nominal current - A 1 Nominal torque - Ncm - 2 Nominal speed - rpm - 9000 Friction torque at no load - Ncm - 0.22 Peak stall torque Ncm - 11 No load speed - rpm - 10900 Maximum output power W 31 Nominal power - W 18.5 Torque constant - Ncm/A 2.1 Rotor inertia gcm^2 15 Weight kg - 0.085
