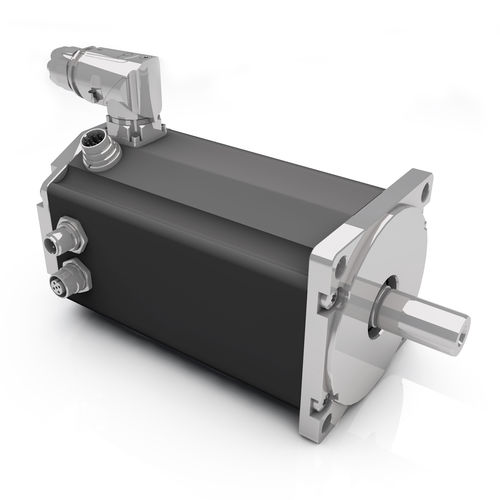

DC motor BG 95x40 dPro CO/IObrushless24 V48 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 24 V, 48 V, 60 V
- Other characteristics
- CANopen
- Power
859 W, 862 W, 876 W
(1.168 hp, 1.172 hp, 1.191 hp)- Torque
1.99 Nm, 2.14 Nm, 2.16 Nm
(1.46775 ft.lb, 1.57838 ft.lb, 1.59313 ft.lb)- Rotational speed
3,810 rpm, 3,910 rpm, 4,120 rpm
(23,938.94 rad.min-1, 24,567.25 rad.min-1, 25,886.72 rad.min-1)
Description
» Control trough CANopen (CO) or in stand-alone operations (IO) through digital and analogue inputs
» With integrated 4Q Controller
» High positions accuracy and excellent control characteristics due to an integral magnetic encoder with a resolution of 4x1024 pulses per round
» With sinus commutation
» Power-and Logicsupply galvanically insulated
