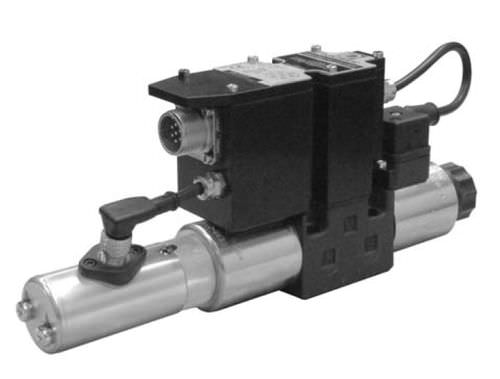

Spool hydraulic directional control valve DSE3J series
mechanically-operatedproportional

spool hydraulic directional control valve
spool hydraulic directional control valve
spool hydraulic directional control valve
spool hydraulic directional control valve
Add to favorites
Compare this product


Characteristics

Type
spool
Actuating method
mechanically-operated
Other characteristics
proportional
Operating pressure

350 bar
(5,076 psi)

Flow rate

80 l/min
(21 us gal/min)

Description

The perfect combination for precise movements: the position feedback and the integrated electronics allow an hysteresis and repeatability lower than 0,2%, a frequency response that reaches the 50 Hz at <90° (with a 10% signal) and a pressure gain that allows to reach the 80% of total pressure with a 2% signal. Possibility to use a mechanical zero overlap spool. In compliance with the EMC standards and IP67 protection degree. The optional kit LINPC-USB/10 enables the reading of the values coming from the external command, the exclusion of PLC and the direct control of the valve, the interfacing of PC and electronic card.
