2-way solenoid valve EDC-1
hydraulicIP65IP67

2-way solenoid valve
2-way solenoid valve
2-way solenoid valve
Add to favorites
Compare this product


Characteristics

Ports/positions
2-way
Medium
hydraulic
Body
IP65, IP67
Other characteristics
proportional
Voltage

Min.: 10 V

Max.: 30 V

Temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

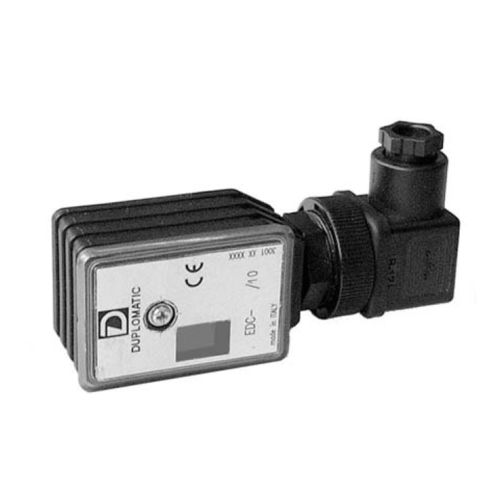

The EDC-1 connector is a digital amplifier controlling open loop proportional valves. The unit supplies a variable current proportionally to the reference signal and independently of temperature variations or load impedance, with a resolution of 1% on 2600 mA (the full scale value). The PWM stage on the solenoid power supply makes it possible to reduce the valve hysteresis thus optimising control precision. The connector is customizable with different maximum current sizes and switching frequencies (PWM), optimized according to the valve to be controlled. Setting is possible by buttons and display inside the case, or with a notebook by RS232 with the software EDC-PC, (see par. 6.2
