Research particle size analyzer GRIMM SMPS+C 5420 | 5420-TR-CEN

particle size distribution

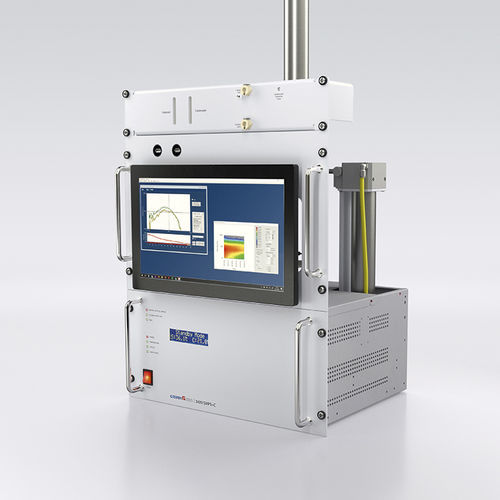

SMPS+C system in 19” rack-design, available as model 5420-TR-CEN with a size range of 10 nm to 1,094 nm for full compliance with CEN/TS 17434:2020 or as model 5420 version with M DMA for a size range of 5 nm to 350 nm. It is designed for unattended 24/7 real-time monitoring of UFP in ambient air. FEATURES Precise nanoparticle sizing and counting: n-Butanol based CPC with exchangeable Vienna Reischl Type DMAs - CEN/TS compliant with L-DMA: 10 … 1,094 nm - Lower sizing limit with M-DMA: 5 … 350 nm Compact 19” design Flow rates controlled by critical orifices Integrated pumps for sample and sheath air Saturator shutter Long-term butanol and condensate tanks BENEFITS - Harmonized UFP sizing and counting - Low particle losses, high size resolution - Easy integration in AQMS stations - No external vacuum required - Unattended 24/7 operation for 3 weeks - Prompt transport without butanol drying APPLICATIONS - Compliance with the new European Air Quality Monitoring Directive (AQMD) - Regulatory air quality monitoring, e.g. governmental networks - Compliant for use in ACTRIS - Fundamental aerosol research - Environmental aerosol research - Nanotechnology process monitoring - Studies on atmospheric nucleation - Nanoparticle transport
