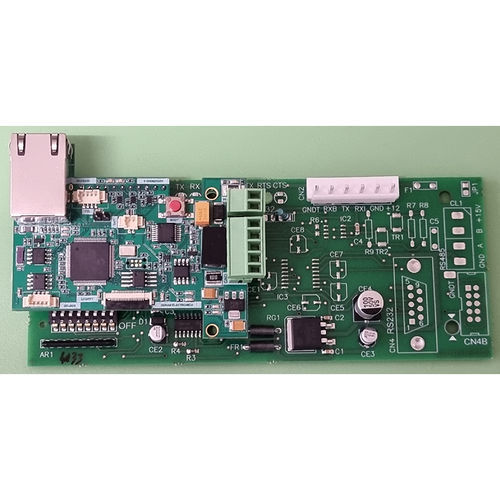

Modbus TCP RTU INTEGRA II

EthernetRS-232RS-485

This module allows integration with other systems of the DURGAS control panel in its configurations from one to four zones, up to a maximum number of 16 control panels. It allows access to the internal data of the control panel for each detector, as well as ordering a series of commands on the control panel, certain detectors and/or groups. To be able to do this, several types of connections are offered: -. Modbus Ethernet 10/100 -. Modbus serial RTU: 232/485/ AND 485 IN CHAINED MODE Also: -. It can be configured by web page by IP address or by DHCP -. Includes Debug via Telnet -. Remote software update via ethernet. -. Vision of the values in real time via WEB page (Cadence of one second/value) -. Access to the values via API-WEB (in this case, to access the values, contact DURAN ELECTRÓNICA) -. Pending implementation in a future version: MQTT protocol for detector value / cadence one second. (To access the MQTT JSON format, contact DURAN ELECTRÓNICA)
