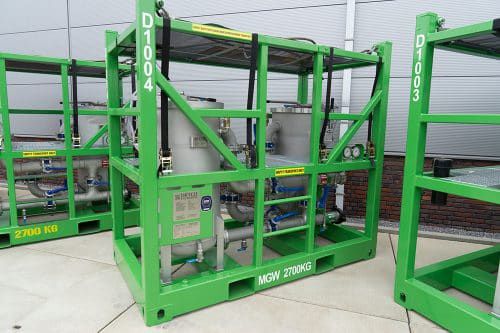

Cartridge filter unit DFC24

hydraulicwatercompact

The Dual Vessel Cartridge Filter Unit is based on 25 years of experience in manufacturing oilfield equipment. All new features are based on customer feedback and combined in our unique twin vessel filter unit. HSE, efficiency and reliability are the key drivers for our product improvement and design. For the vessel closure your can choose the Rudi Quick Opening Closure. This allows the operator to open and close the filter vessel quickly and safely for changing the filter cartridges. The unit is designed and built in accordance with DNV 2.7/ ISO10855/ EN12079 and certified by DNV or Lloyds. Our standard DFC24 unit has two housings with each 50 cartridges and 6 valves for parallel, in series and by-pass operation. Features Compact footprint Quick opening closure lid Simple Davit Frame designed and certified according DNV 2.7-1/ISO 10855/EN12079 All wetted parts SS316 Connections unions fig. 206, 100% leakproof Standard 10 bar design to PED2014/68 PED module A for hazardous fluids Applications Completion fluids Produced water Work over fluids Gravel pack fluids Wellbore clean up fluids (Bio) diesel Surface water intake Process water Pre filtration RO Frac fluids Pipeline flushing Wastewater
