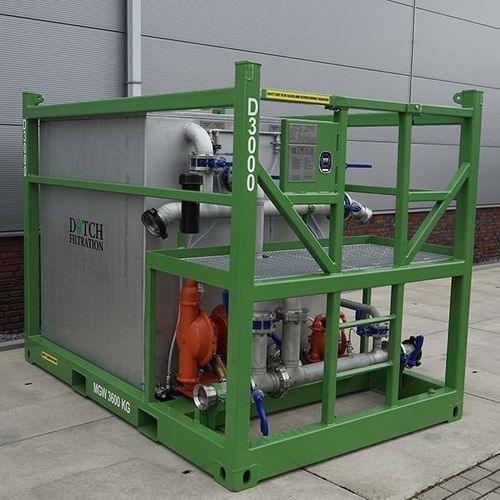

The Dutch Filtration dual mixing slurry skid is a complete unit for pre-coating and body feed of the filter press. The unit is complete with 2 mixing tanks both 17 BBL/2.7 m3, air driven pre-coat and body feed pump. The frame is equipped with a working platform for safe and easy adding filter aid (DE media) into the mix tanks.«
The unit can be optionally supplied with a manifold to unit two filter presses in parallel (also known as twin press set-up)
Features
Frame designed and certified according DNV 2.7-1/ISO 10855/EN 12079, globally accepted for offshore use.
Air driven precoat and body feed pump, simple and easy controlling.
2×17 bbl separate mixtanks for maximum flexibility.
Connections unions fig. 206.
Air agitation system.
Applications
Completion Fluids
Work over fluids
Gravel pack fluids
Wellbore clean up fluids
(Bio) diesel
Surface water intake
Process water
Frac fluids
Waste water
Options
Connections for Dust free DE dosing system
Other volume tanks singel or dual
Stackable combined with dual vessel cartridge unit
Manifold sizes and connection types, High Flow 6″
ISO Corner Blocks
