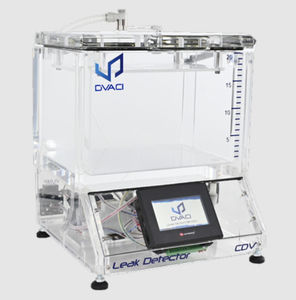

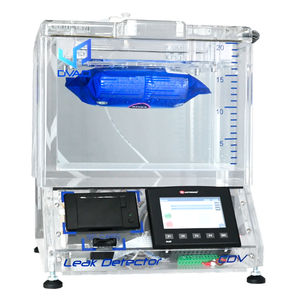

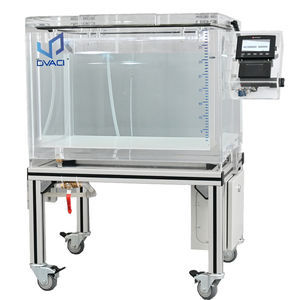

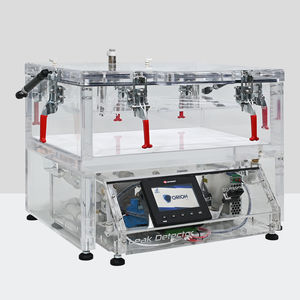

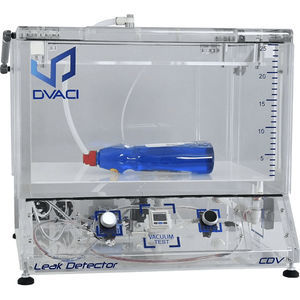

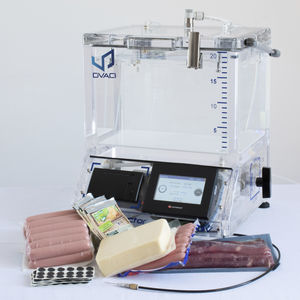

Digital leak tester CDV BT PVV

pneumaticpressurevacuum chamber

CDV BT PVV vacuum chambers have a touch-screen setup system where test cycles can be programmed instantly. The operator places products inside the chamber starts the cycle and can be focused on observing the samples during the test cycle. CDV BT PVV vacuum chambers include an SD Card Slot that allows the extraction if test results on an EXCEL file and update the Firmware of the PLC touchscreen. Vacuum is generated by a Venturi system integrated in the chamber fed by a compressed air supply. If this energy source is not available, another version of this model includes an electric vacuum pump. The vacuum creates a difference in pressure between the inside and outside of the specimen or sample. OPTIONS • Thermal Printer • Barcode Scanner CDV BT PVV vacuum chambers are built with a PLC touchscreen where vacuum level and time can be set and controlled through a user-friendly, advanced interface. Access to the program is password protected. Up to 40 users can be registered with personal passwords for each. The PLC touchscreen functions similarly to a Smartphone with apps. The system runs with three preinstalled applications and more can be added upon customer request and or necessities.
