Rotary vane compressor CC series
airelectrically-poweredstationary

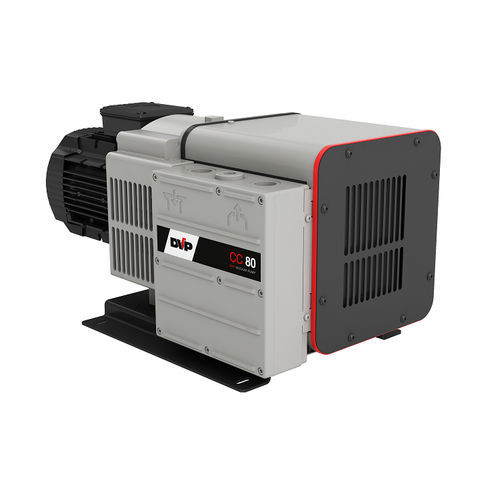

Rotary vane compressor - CC series - DVP Vacuum Technology - air / electrically-powered / stationary

Rotary vane compressor - CC series - DVP Vacuum Technology - air / electrically-powered / stationary - image - 2

Add to favorites

Compare this product

Characteristics

Technology: rotary vane
Type: air
Power source: electrically-powered
Portability: stationary
Lubrication: oil-free
Application domain: industrial
Applications: discharge, construction, suction
Other characteristics: compact
Pressure: 1 bar, 1.2 bar
(14.5 psi, 17.4 psi)
Flow: 60 m³/h, 70 m³/h, 80 m³/h, 90 m³/h
(2,118.88 ft³/h, 2,472.03 ft³/h, 2,825.17 ft³/h, 3,178.32 ft³/h)
Power: 2.2 kW, 3 kW, 3.4 kW, 4 kW
(2.99 hp, 4.08 hp, 4.62 hp, 5.44 hp)
Length: 723 mm
(28 in)
Width: 365 mm
(14 in)
Height: 382 mm
(15 in)
Weight: 70 kg, 74 kg
(154.3 lb, 163.1 lb)
Noise level: 70 dB, 72 dB, 74 dB

Description

CC 60 and CC 80 oil-free rotary vane vacuum compressors have a powerful fan installed between the pump housing and the motor that ensures optimal cooling and a sturdy and compact housing protection that keeps the noise level extremely low. The highly durable graphite vanes and the low internal operating temperature guarantee resistant and long-lasting vanes. Maintenance has never been so easy thanks to the removable front grid, which allows direct access to the vanes, for quick replacement without disassembling the complete conveyer carter. With the optimization of the suction and discharge phases, energy efficiency is increased: from atmospheric pressure to absolute final pressure, energy consumption does not change. The CC 60 and CC 80 compressors are equipped with: • Protective filter at the inlet. Main application fields: oxygenation and purification of wastewater, landfill sites, solar panels construction.
