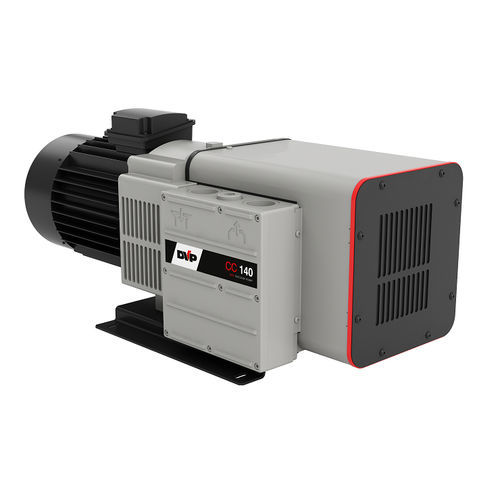

Rotary vane compressor CC series
airelectrically-poweredstationary

Add to favorites

Compare this product

Characteristics

Technology

rotary vane

Type

air

Power source

electrically-powered

Portability

stationary

Lubrication

oil-free

Application domain

industrial

Applications

discharge, construction, suction

Other characteristics

compact

Pressure

1.1 bar, 1.2 bar, 1.3 bar
(15.95 psi, 17.4 psi, 18.85 psi)

Flow

100 m³/h, 115 m³/h, 130 m³/h, 150 m³/h
(3,531.47 ft³/h, 4,061.19 ft³/h, 4,590.91 ft³/h, 5,297.2 ft³/h)

Power

4 kW, 4.5 kW, 5.5 kW, 6.6 kW
(5.44 hp, 6.12 hp, 7.48 hp, 8.97 hp)

Width

365 mm
(14 in)

Height

305 mm
(12 in)

Weight

93 kg, 97 kg
(205 lb, 213.8 lb)

Noise level

Max.: 78 dB

Min.: 73 dB

Description

CC 100 and CC 140 oil-free rotary vane vacuum compressors have a powerful fan installed between the pump housing and the motor that ensures optimal cooling and a sturdy and compact housing protection that keeps the noise level extremely low. The highly durable graphite vanes and the low internal operating temperature guarantee resistant and long-lasting vanes. Maintenance has never been so easy thanks to the removable front grid, which allows direct access to the vanes, for quick replacement without disassembling the complete conveyer carter. With the optimization of the suction and discharge phases, energy efficiency is increased: from atmospheric pressure to absolute final pressure, energy consumption does not change. The CC 100 and CC 140 compressors are equipped with: • Protective filter at the inlet Main application fields: oxygenation and purification of wastewater, landfill sites, and solar panels construction.
