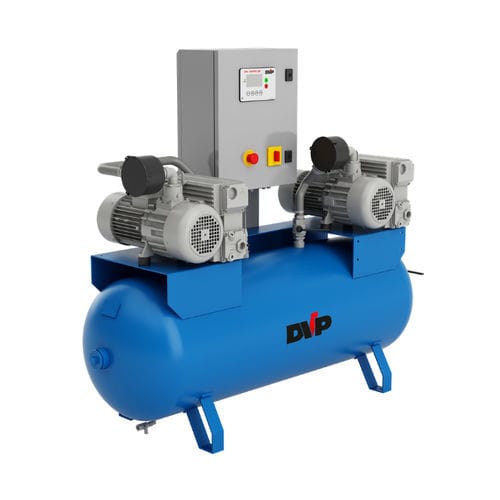

Lubricated vacuum system CPA DUPLEX series

industrialcentralized

CPA Duplex are high-efficiency vacuum systems with two lubricated rotary vane pumps with IE3 motor and welded vacuum tight painted steel tank, used in centralized vacuum systems to create and maintain a certain vacuum within the system to allow proper operation of the equipment connected. Using CPA Duplex vacuum systems is advantageous from an energy-saving point of view, as the switching on and off of the pumps are automatically optimized according to the vacuum demand in the system based on the needs of the users. Main features: PLC control panel with touchscreen display in 8 selectable languages Internet connection for remote access as standard, with PLC control panel easily accessible from PC and Smartphone Remote assistance Reading and downloading sensor, alarms and user logins data Data storage in memory E-mail alerts Sensors: plant vacuum switch, ammeter transducer, room thermometer (optional: oil level switch, oil thermometer, oil separator filter pressure switch) Customized parameter management according to plant need Main application fields: vacuum centralized systems for industrial use.
