Lubricated vacuum system CPA TRIPLEX H series

medicalindustrialautomatic

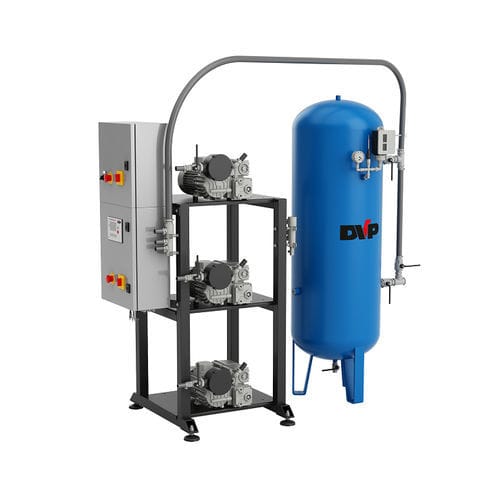

CPA Triplex H medical vacuum systems are primarily used for hospital applications. Manufactured based on the industrial vacuum systems with triple lubricated rotary vane vacuum pump with IE3 motor and vertical welded vacuum tight painted steel tank, the CPA Triplex H medical vacuum systems have been developed according to the requirements of EN ISO 7396-1 Standard. Using CPA Triplex vacuum systems is advantageous from an energy-saving point of view, as the switching on and off of the pumps are automatically optimized according to the vacuum demand in the system based on the needs of the users. Main features: PLC control panel with touchscreen display in 8 selectable languages Internet connection for remote access as standard, with PLC control panel easily accessible from PC and Smartphone Remote assistance Reading and downloading sensor, alarms and user logins data Data storage in memory E-mail alerts Sensors: plant vacuum switch, ammeter transducer, room thermometer (optional: oil level switch, oil thermometer, oil separator filter pressure switch) Customized parameter management according to plant need Main application fields: hospital sector.
