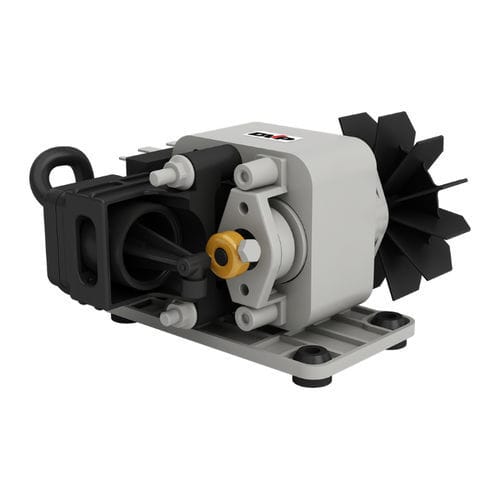

Piston vacuum pump ZB seriesoil-freesingle-stagecompressor
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Lubrication
- oil-free
- Number of stages
- single-stage
- Other characteristics
- compressor
- Ultimate vacuum
250 mbar
(3.63 psi)- Flow rate
12 l/min, 14 l/min
(3.17 us gal/min, 3.7 us gal/min)- Power
0.06 kW, 0.07 kW, 0.09 kW
(0.08 hp, 0.1 hp, 0.12 hp)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 120 °C
(248 °F)- Length
111 mm
(4 in)- Width
130 mm, 141 mm
(5.12 in, 5.55 in)- Height
106 mm
(4.17 in)- Noise level
50 dB, 53 dB, 54 dB, 58 dB
- Weight
1.35 kg
(2.98 lb)
Description
zB 12 piston pump and ZB 12C piston compressor are specifically designed for dentistry, medical devices, hobbies and light industry applications. The design structure requires the installation of the pump in safe environments. No downtime is required because the unit operates in continuous duty (S1). The noise level is enhanced.
The fixing distance is unchanged from the previous series.
The ZB 12 piston pump and ZB 12C piston compressor are equipped with:
Shock mounts
Silencer
Main application fields: dentistry, medical devices, hobbies and light industry applications.
