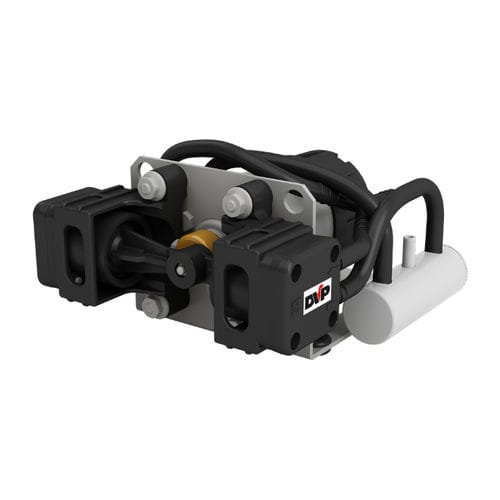

Piston vacuum pump ZB 20CCoil-freesingle-stagemotor
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Lubrication
- oil-free
- Number of stages
- single-stage
- Applications
- motor
- Ultimate vacuum
250 mbar
(3.63 psi)- Flow rate
20 l/min
(5.28 us gal/min)- Power
25 W, 30 W
(0.03 hp, 0.04 hp)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 50 °C
(122 °F)- Width
128 mm
(5.04 in)- Height
98 mm
(3.86 in)- Noise level
58 dB
- Weight
0.7 kg
(1.54 lb)
Description
ZB 20CC piston pump with direct current motor is specifically designed for dentistry, medical devices, hobbies and light industry applications. The design structure requires the installation of the pump in safe environments. No downtime is required because the unit operates in continuous duty (S1). The fixing distance is unchanged from the previous series.
The ZB 20CC piston pump is equipped with:
Shock mounts
Silencer
Main application fields: dentistry, medical devices, hobbies and light industry applications.
