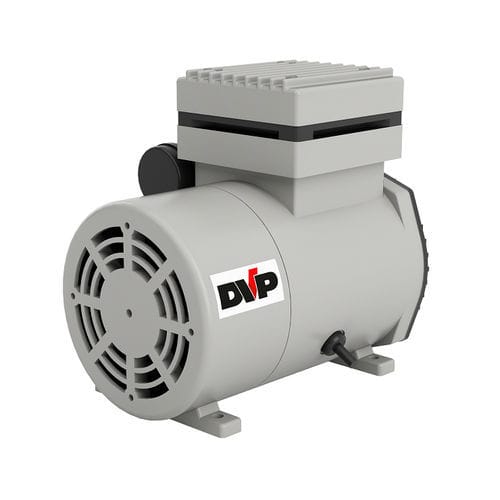

Piston vacuum pump ZA 32diaphragmoil-freesingle-stage
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm, piston
- Lubrication
- oil-free
- Number of stages
- single-stage
- Applications
- suction
- Other characteristics
- small, compressor
- Ultimate vacuum
110 mbar
(1.6 psi)- Flow rate
32 l/min, 38 l/min
(8.45 us gal/min, 10.04 us gal/min)- Power
200 kW
(271.92 hp)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 50 °C
(122 °F)- Length
202 mm
(8 in)- Width
154 mm
(6.06 in)- Height
192 mm
(7.56 in)- Noise level
50 dB, 52 dB
- Weight
7.1 kg
(15.65 lb)
Description
piston pump combines the best characteristics of traditional piston pumps and diaphragm pumps into small units with excellent features. The ZA 32 piston pump is ideal for use in applications where oil-mist is undesirable. Moreover, the oil-free design makes the maintenance intervals very long.
This pump can work as compressor up to a maximum pressure of 3 bar.
The ZA 32 pump is equipped with:
Power cord (con spina CEE22)
Shock mounts
Silencer
Mail application fields:
electromedical, suction cups conveyors, laboratory applications and construction.
Catalogs
ZA 32
2 Pages
