Rotary vane vacuum pump LC serieslubricatedsingle-stageflexible
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- lubricated
- Number of stages
- single-stage
- Applications
- suction, gas, for packaging, flexible
- Ultimate vacuum
0.1 mbar
(0 psi)- Flow rate
205 m³/h, 245 m³/h, 305 m³/h, 365 m³/h
(7,239.51 ft³/h, 8,652.09 ft³/h, 10,770.97 ft³/h, 12,889.85 ft³/h)- Power
5.5 kW, 6.6 kW, 7.5 kW, 9 kW
(7.48 hp, 8.97 hp, 10.2 hp, 12.24 hp)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)- Length
950 mm, 970 mm
(37 in, 38 in)- Width
540 mm
(21.26 in)- Height
442 mm
(17.4 in)- Noise level
69 dB, 71 dB, 73 dB
- Weight
170 kg, 180 kg
(374.79 lb, 396.83 lb)
Description

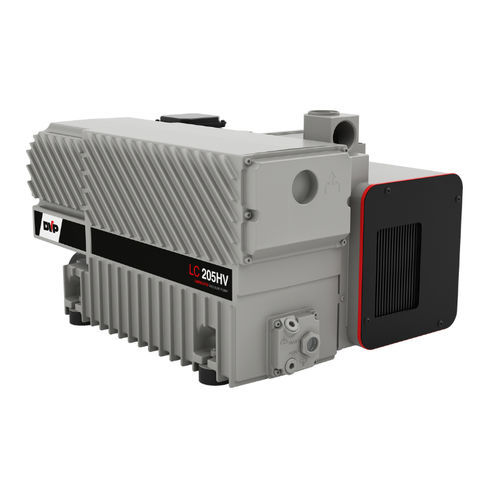

The new LC 205 and LC 305 lubricated vane vacuum pumps are available in a special HV version, suitable for packaging lines where the pump is located inside boxes. The direction of the cooling air outlet flow is in fact downwards, so the hot air does not stagnate inside the housing. In the LC 205HV and LC 305HV versions, the new suction fitting has a double connection to the operating line, both frontally and vertically.
The LC 205HV and LC 305HV pumps are equipped with:
• Suction fitting with double connection
• Oil check valve
• Exhaust mist eliminator
• Automatic floating oil recovery valve
• Gas ballast with manual cut-off valve
• Shock mounts
• Oil filter with by-pass
• Flexible transmission coupling;
Main application fields: food packaging.
Catalogs
LC 205HV – LC 305HV
1 Pages
