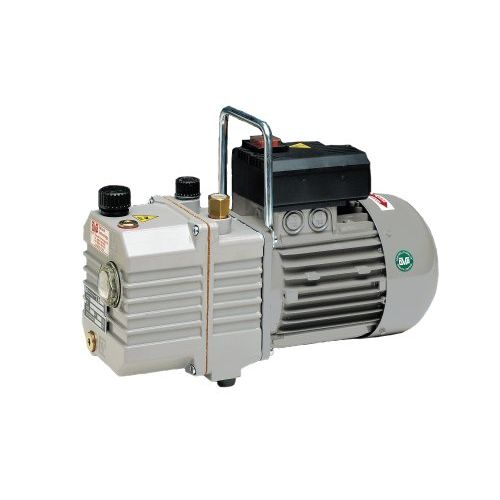

Rotary vane vacuum pump RC series
lubricatedsingle-stagemotor

Rotary vane vacuum pump - RC series - DVP Vacuum Technology - lubricated / single-stage / motor
Rotary vane vacuum pump - RC series - DVP Vacuum Technology - lubricated / single-stage / motor
Rotary vane vacuum pump - RC series - DVP Vacuum Technology - lubricated / single-stage / motor - image - 2
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
lubricated
Number of stages
single-stage
Applications
for laboratories, gas, motor
Other characteristics
oil-sealed, high-vacuum
Ultimate vacuum

0.1 mbar
(0 psi)

Flow rate

4 m³/h, 4.3 m³/h, 4.6 m³/h, 5 m³/h
(141.26 ft³/h, 151.85 ft³/h, 162.45 ft³/h, 176.57 ft³/h)

Power

0.4 kW
(0.54 hp)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 55 °C
(131 °F)

Length

353 mm
(14 in)

Width

144 mm
(5.67 in)

Height

244 mm
(9.61 in)

Noise level

52 dB, 54 dB

Weight

9 kg, 10 kg, 11 kg, 12 kg
(19.84 lb, 22.05 lb, 24.25 lb, 26.46 lb)

Description

RC 4M single stage and RC 4D double stage high vacuum pumps are specifically designed for the air conditioning and refrigeration sector and for laboratory applications. The single or double stage version provide optimal final pressure. A coupling drive connecting motor and pump ensures reliable operation, long life and easy maintenance. The RC 4M and RC 4D pumps are equipped with: • Thermal protector (1~ only) • Handle for transport∑ • Gas ballast • On/Off switch (1~ only) • Cable with schuko plug (1~ only) • Oil check valve (RC 4M) • Oil check system (RC 4D) • Shock mounts Main application fields: refrigeration and air-conditioning systems, both in the residential and automotive sectors, laboratory applications.
