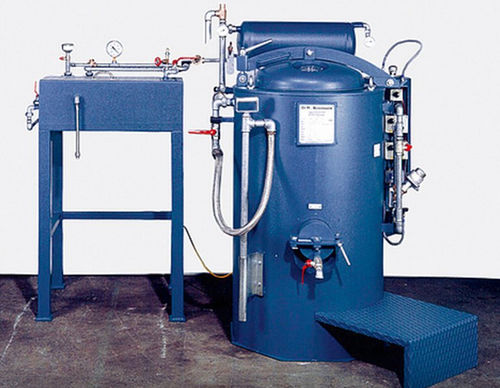

Solvent distillation unit DW

automaticvacuum

Cylindrical, vacuum-tight distillation boiler, pressure relief valve, hinged lid counterbalanced by a gas spring, viewing glass, temperature- and solvent-resistant gasket Heating jacket with thermal oil as heat transfer medium, integrated Ex-de heating elements, minimum-level switch as safety against low oil level Insulation of boiler, heating jacket, and lid Water-cooled condenser, parts in contact with solvent are made of stainless steel Temperature limiter switches off the heating if the solvent temperature exceeds a set limit Cleaning hole with hinged cover for residue discharge Signal lamp and EMERGENCY STOP, explosion-proof, mounted directly at the distillation unit Control cabinet with control elements for installation outside the hazardous area Separate control box for the pneumatic system Batch distillation Accessories Vacuum unit Automatic filling in connection with vacuum Thermostatic valves if the unit is connected to an on-site cooling/public water supply; cooling water devices with separate circuits are also available For the distillation of wash solvents: compact version for installation outside the hazardous area
