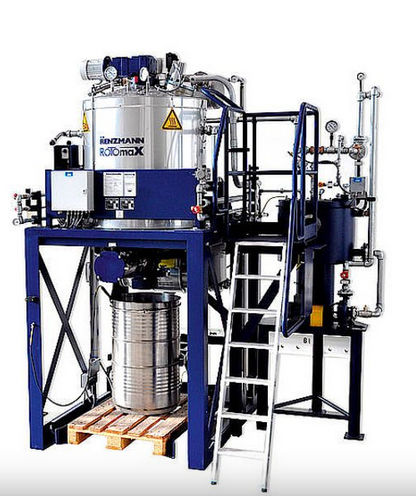

Solvent distillation unit ROTOmaX-e

automaticvacuum

Cylindrical, vacuum-tight distillation boiler consisting of an insulated dome (stainless steel) with a heating floor (standard steel) flanged to the bottom Insulated, flat heating floor for heating with steam (10 bar, 185°C max), consisting of a double-walled plate, ensures an excellent heat transfer and full heating capacity regardless of the solvent level in the boiler Steam generator flanged to the heating floor, operated with electric power or with steam or thermal oil from an on-site network. Direct heating of the floor with steam or warm water is also possible Water-cooled stainless steel condenser Rotating scraper system (rotor), prevents incrustations on the heating floor, agitates the material to be distilled and keeps the discharge valve clean Dirt-resistant discharge valve, operated manually or pneumatically Unit on sturdy frame Discharge height adapted to disposal container and/or 200-l-barrel (on a pallet). Other heights are possible. Viewing glass and explosion-proof halogen lamp for observing the distillation process Automatic filling stop when a preset filling quantity is reached; the filling quantity is monitoring by means of load cells that register the total weight of the distillation boiler; filling stop by means of a pneumatic ball valve in the filling line Batch distillation or continuous distillation possible Control of the heating temperature according to the boiling temperature PLC system and display with readings on heating temperature, filling quantity, refilling quantity, residue quantity, distillate quantity Accessories Vacuum unit for lowering process temperatures with a liquid jet vacuum pump
