Solvent washing machine SPF

alkalinesprayautomatic

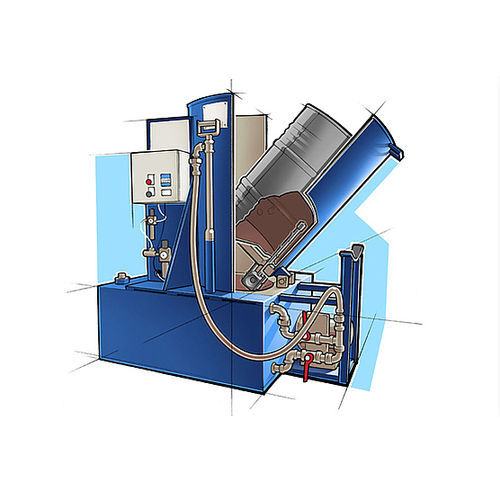

User-friendly washing machine for inside cleaning of barrels and small containers through spraying with solvent Spray pipe with rotating spray head, also suitable for bung barrels The standard version is entirely pneumatic, ready to run after connection to a compressed air supply and, if necessary, to an existing air extraction system, no electrical installation required Easy loading at low working height; the barrels are placed on their sides onto a shell-shaped support The barrel support is swivelled to close the washing chamber Position sensor for the barrel and the barrel support; spraying does not begin until the machine is closed and the barrel has been placed over the spray pipe Dirt resistant pneumatic diaphragm pump as washing pump Closed solvent tank under the washing chamber, visual level indicator Strainer for protecting the container and the pump Pneumatic timer for easy setting of the washing time Explosion protection according to ATEX, category 1 for zone 0 inside, category 2 for zone 1 outside. Accessories Filling and draining with the washing pump Automatic filling from the solvent line / with external pump, filling stop with electrical, explosion-proof level switch Air extraction with explosion-proof fan (incl. explosion-proof electric motor) Version for water-based alkaline
