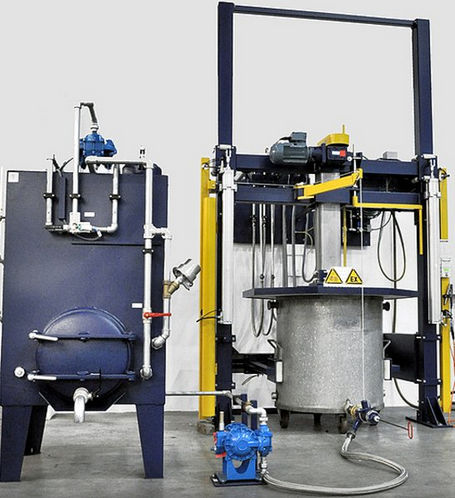

Solvent washing machine Robus

automaticATEXrobust

Robust and user-friendly washing machine for inside cleaning of cylindrical and rectangular containers with brushes and simultaneous spraying with solvent, conductive brushes with type examination according to ATEX → no nitrogen inerting required Very good inside cleaning of cylindrical containers with a centrifugal folding brush. Inside cleaning of rectangular containers by a centrifugal brush with long bristles; by pressing a button on a rapid-action coupling, the operator can easily exchange the brush for a centrifugal folding brush Spraying system for washing with circulated solvent and rinsing with clean solvent. The brush is lowered into the container, and the upper container opening closed by the machine lid, by means of a pneumatic lifting frame Position sensor for the lid; spraying and brush rotation do not begin until the lid rests on the container Washing solvent in separate container, level switch for filling and draining Dirt resistant diaphragm pump as washing pump, separate pump for rinsing, pneumatic diaphragm pump for draining Filter with removable basket for protecting the evacuation pump and the solvent tank Flow monitor; the brush rotation does not start until solvent has been sprayed on the container to prevent dry friction Automatic washing program: washing – draining – rinsing – internal air extraction; program steps can be selected individually Explosion protection according to ATEX, category 1 (with type examination) for zone 0 inside, category 2 for zone 1 outside Accessories Centrifugal folding brush with active, reinforced contact pressure and much higher driving power
