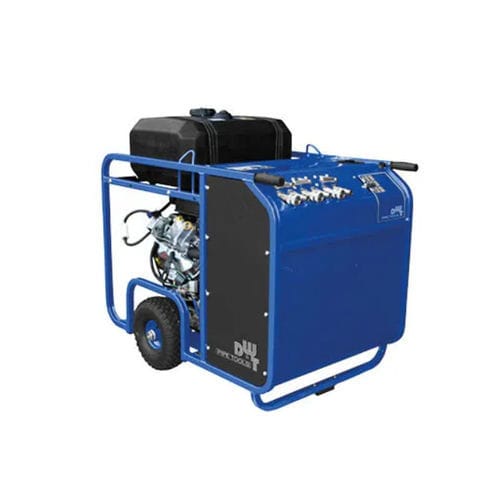

Electrically-powered hydraulic power unit DHP seriesdiesel enginefor pumpfor pipe
Add to favorites
Compare this product
Characteristics
- Power source
- electrically-powered, diesel engine
- Applications
- for pump, for pipe
- Other characteristics
- compact, mobile
- Operating pressure
120 bar, 170 bar
(1,740 psi, 2,466 psi)- Nominal power
11 kW, 25.2 kW
(15 hp, 25.2 hp)- Flow rate
Max.: 60 l/min
(15.85 us gal/min)Min.: 10 l/min
(2.64 us gal/min)
Description
Wired remote control
On-Off Valve
Extremely easy to maintain - Direct acces to all parts
Oil level indicator, temperature and oil quality indicator
Sturdy steel frame construction
Our hydraulic power packs have an infinitely variable delivery rate of 10 to 50 l/min, at 105 bar working pressure. The oil flow can be
controlled by means of the selector switch or throttle lever. Therefore, it is possible to connect hand tools with a flow rate of up to 24 l/min as well as high-performance machines with 50 l/min.
Hydraulic power packs can be used with the following tools:
Pipe beveling machines
Pipe cutting machines
Chisel hammers
Cut-off saws
Drilling machines
Core drilling machines
Power wrenches
Catalogs
No catalogs are available for this product.
See all of DWT GmbH‘s catalogs
