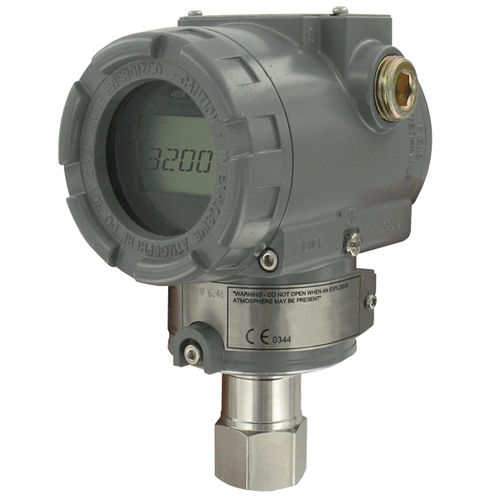

Relative pressure transmitter 3200G series

thermalmembranedigital

The Mercoid® Series 3200G Smart Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and programmable using HART® Communication. The Series 3200G is capable of being configured with the zero and span buttons, a field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Series 3200G is FM approved for use in hazardous (Classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application. PRODUCT APPLICATIONS Pulp and paperOil and gas FEATURES Completely configurable using zero/span buttons (no calibrator required) Rangeablity (100:1) Automatic ambient temperature compensation Fail-mode process function Specifications Wetted Materials: 316L SS. Rangeability: 100:1 turn down. Stability: ±0.125% FSO/yr. Power Requirements: 11.9 to 45 VDC. Response Time: 0.12 seconds. Damping Time: 0.25 to 60 seconds Weight: 5.5 lb (2.5 kg). Agency Approvals: CE, FM.
