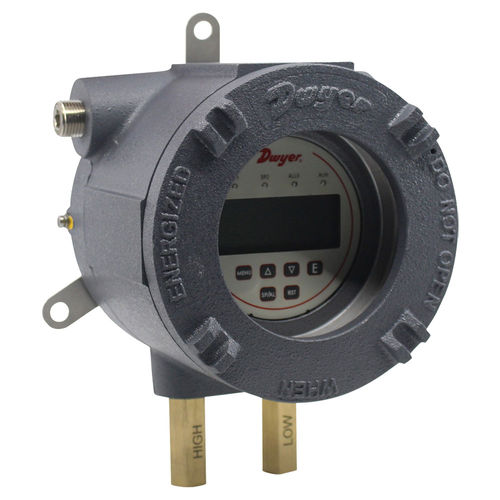

Flow pressure controller Digihelic® AT-DH3

gasdifferentialdigital

The Series AT-DH3 ATEX/IECEx Approved Digihelic® Differential Pressure Controller is a 3-in-1 instrument possessing a digital display gage, control relay switches, and a transmitter with current output. Combining these three features allows the reduction of several instruments with one product, saving inventory, installation time and money. The Digihelic® controller is the ideal instrument for hazardous area pressure, velocity and flow applications by allowing for the selection of pressure, velocity or volumetric flow operation in several commonly used engineering units. Two SPDT control relays with adjustable dead bands are provided along with a scalable 4-20 mA process output. In velocity or flow modes, a square root output is provided on the 4-20 mA signal to coincide with the actual flow curve. Flameproof enclosures are available in aluminum and can include a glass window for viewing process information and set point status on the digital display. Important notes for installation: • Cables must be fitted through 1/2" NPT cable gland or ATEX/IECEx conduit (not supplied with instrument). • Make sure after cabling to close tight cover and cable gland, in order to maintain IP66 rating. • Open cover only after de-energizing instrument. • Attention: Check local safety rules and warnings on unit and manual for a correct use of the instrument in hazardous area. FEATURES Saves inventory, installation time, and money by consolidating several instruments into one ATEX/IECEx approved product Flameproof enclosure with optional glass window and aluminum housing protects the device in hazardous areas while giving local visibility to process pressure and set point status
