MULTIPURPOSE BUCKETS FOR WHEEL LOADERS, TRACK LOADERS AND TOOLCARRIERS:
BACKDRAG, DOZE, LOAD AND GRAB

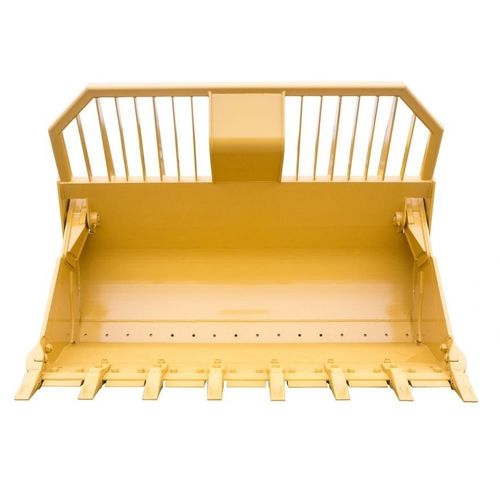

Dymax Multipurpose 4-in-1 Buckets for Wheel Loaders, Toolcarriers and Track Loaders are fabricated from high-strength alloy steel and designed for thousands of hours of profitable production.
These multi-purpose buckets are versatile tools, whether working as general purpose buckets, or operating in clamshell, back dragging, back filling and land clearing applications.
Drilled to accept OEM bolt on cutting edges or teeth installed on the leading clamshell edge. Optional bolt-on edges are available for the backside of the clamshell if specified. All buckets feature clam positioning guides.
A Dymax heat-treated bolt-on reversible cutting edge is installed on the dozer section.
Large, high-quality cylinders operate the clamp portion of the bucket and the design provides for protection of those cylinders and fittings.
Cutting side bar is beveled for increased penetration of material.
Bucket floor design incorporates extra wear plates for back dragging and clamping applications.
The spill plate features gussets for added strength in tough applications.
Clam opens a generous 85-90 degrees, providing full access to the dozer portion of the bucket and allowing the bucket to be used in applications that require grabbing or clamping materials for hauling or moving.
Available in a direct pin-on style or equipped with coupler hooks to fit the Dymax coupler system or other models.
