1-axis accelerometer 1000SE seriescapacitiveMEMSfor automotive applications
Add to favorites
Compare this product
Characteristics
- Number of axes
- 1-axis
- Technology
- capacitive, MEMS
- Other characteristics
- low-noise, low-frequency, for automotive applications, for machine condition monitoring, voltage output, with analog output, IP65
- Acceleration range
Max.: 500 m/s²
(1,640 ft/s²)Min.: 20 m/s²
(66 ft/s²)- Frequency
Max.: 3,000 Hz
Min.: 1,500 Hz
Description
Sensor Type: Accelerometer
Sensor Technology: MEMS Capacitive
Sensitive Direction: Uniaxial
Output Signal: Voltage
Protection class: IP68
Temperature: -40°C to +100°C
Housing material: Aluminum/Stainless Steel
• Low cost sensors
• Accurate DC Measurement
• High shock protection
• Low noise – high resolution
• Single-ended output signal
• Gas damping

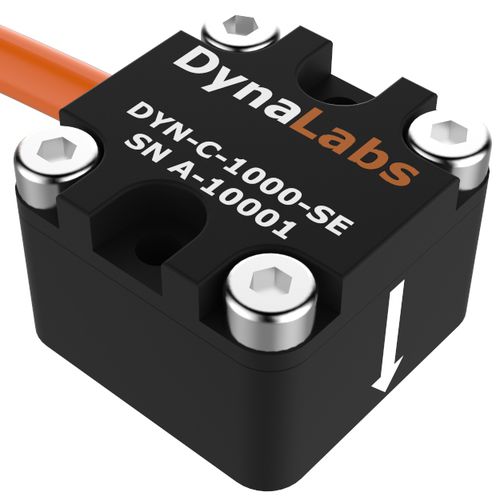

DynaLabs 1000 SE (Single-Ended) series accelerometers based on proven MEMS technology and capacitive operating principle.
The integrated electronic circuitry enables a single-ended analog voltage output.
1000 SE uniaxial accelerometers are low cost and reliable sensors. They provide flexible power supply voltage from
6 to 40 VDC.
