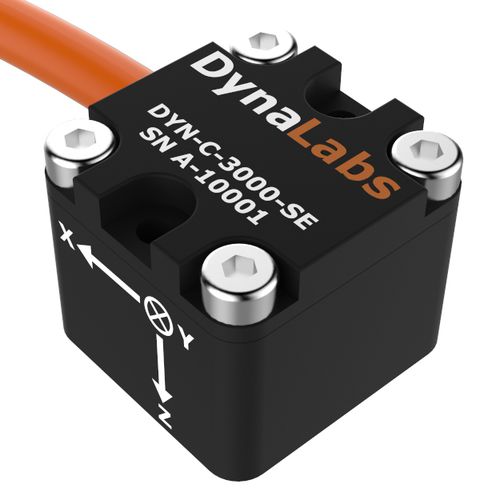

Triaxial accelerometer 3000SE seriescapacitiveMEMSwith TEDS
Add to favorites
Compare this product
Characteristics
- Number of axes
- triaxial
- Technology
- capacitive, MEMS
- Other characteristics
- low-noise, low-frequency, for automotive applications, for machine condition monitoring, with TEDS, voltage output, with analog output, IP65
- Acceleration range
Max.: 5,000 m/s²
(16,404 ft/s²)Min.: 20 m/s²
(66 ft/s²)- Frequency
Max.: 3,000 Hz
Min.: 0 Hz
1,500 Hz
Description
Sensor Type: Accelerometer
Sensor Technology: MEMS Capacitive
Sensitive Direction: Triaxial
Output Signal: Voltage
Protection class: IP68
Temperature: -40°C to +100°C
Housing material: Aluminum/Stainless Steel
• Low cost sensors
• Accurate DC Measurement
• High shock protection
• Low noise – high resolution
• Single-ended output signal
• Gas damping
DynaLabs 3000 SE (Single-Ended) series accelerometers based on proven MEMS technology and capacitive operating principle.
The integrated electronic circuitry enables a single-ended analog voltage output.
3000 SE triaxial accelerometers are low cost and reliable sensors. They provide flexible power supply voltage from
6 to 40 VDC.
