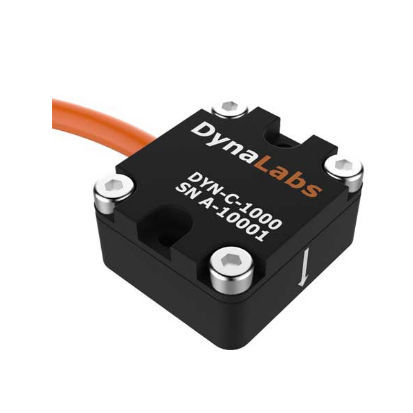

1-axis accelerometer

MEMSindustrialdigital

Sensor Type: Accelerometer Sensor Technology: MEMS Capacitive Digital Interface: USB Sensitive Direction: Triaxial Resolution: 4 μg Sample Rate for USB: 125, 500, 1000 SPS Frequency Range (±5 %): DC to 1000 Hz Housing material: Aluminum/Stainless Steel Measurement Range: ±10g, ±20g, ±40g for 40g Measurement Range:±2g, ±4g, ±8g for 8g We offer USB accelerometers in two configurations: 8g sensor: Include 2g, 4g and 8g 40g sensor: Include 10g, 20g and 40g Applications: • General Industrial Test & Measurement • Condition Monitoring • Robotics and Automation • Tilt sensing • Seismic imaging Software Features: • Display and record: X,Y,Z acceleration, Temperature • Analyse: FFT, downsample and average • Calibration: Linear Equation • Export: .CSV, .MAT, .TXT, and .PNG Sensor is designed with three digital interfaces (USB, RS232, CAN) and can detect dynamic (AC) accelerations with amplitudes ranging from ±2g to ±40g. It has a speed of up to 4000 samples per second and a resolution close to 4 μg in three axes. Users can choose the appropriate sensor based on their needs. The power supply voltage is flexible, ranging from 5 to 16 VDC.
