Positive-pressure pneumatic conveying system LDP 10000

dense phasecontinuouspowder

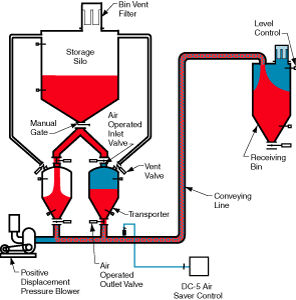

The LDP 10,000 pressure concept conveying system is the ideal unit to use for conveying medium to high density, semi-abrasive, fluidizable materials that are typically difficult to convey, with examples including coffee beans, powdered chocolate, ground limestone and calcium carbonate. This medium phase, low pressure, low to medium velocity, continuous conveying system generates conveying velocities that are typically 1,500 feet per minute (7.5m/sec), with a conveying pressure of up to 15PSIG (1barg). This conveying system utilizes a pressure vessel to feed the material into the conveying line, in addition to DC-5 air saver technology in order to minimize and optimize the low pressure supply air that is provided through use of a low pressure positive displacement blower. This is a high efficiency unit that will effectively convey difficult to transport materials.
