Dilute phase pneumatic conveying system LDP 6000

positive-pressurepowder

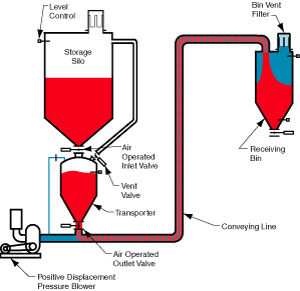

LDP 6000 Pressure Concept™ Batch Dilute Phase Pressure System The LDP 6000 Pressure Concept Conveying System is a dilute phase, low pressure, medium velocity batch conveying system. It is generally used for conveying low to high density, fluidizable, mildly abrasive materials that are not heat sensitive. Examples include sea coal, silica flour, bentonite, soda ash, cement, fly ash, alumina, and hydrated lime. Typical conveying line velocities are generally about 2500 feet per minute (12.5 m/sec) and the conveying pressure is up to 15 PSIG (1 barg). This concept uses a pressure vessel to feed the material into the conveying line while air is supplied by a low pressure positive displacement blower.
