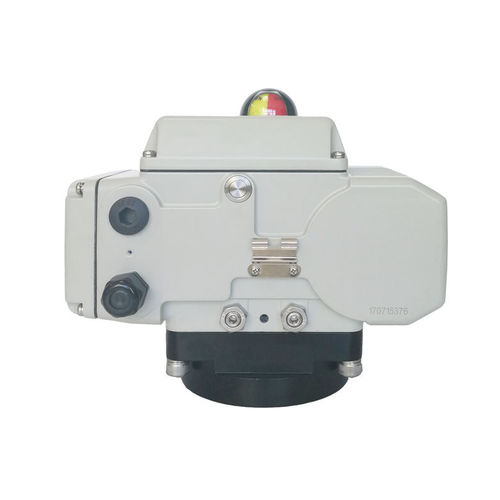

Electric valve actuator DCL series

quarter-turnworm gearcompact

Characteristics 1. Small volume ,light weight ,easy installation and maintenance. 2. Simple and compact structure 3. Small torque while in operating , light and handy . 4. Good modulating performance. 5. Multiple control signals, switch control. Name: - Quarter Turn Actuator Type: - Electric Actuator Motor Power: - 15W To 140W Protection Grade: - IP67 Waterproof Power Supply: - 24VAC/110VAV/220VAC/380VAC/24VDC Standard Time/Torque: - 30S To 75S/100Nm To 2500Nm/885in.lbs To 22125in.lbs Installation Angle: - 360° Total Weight: - 4.5KG To 20KG Feature: - 1/4 Turn Operation Application: - General Description DCL can add standard handwheel to its electric actuators, both for common type or explosion proof type. To ensure the safety of manual handling, an emergency power off button is also available to avoid mistake operation. The power off button is on the back of actuator and very easy to reach. Sometimes, we can not confirm the actuator is powered or not, we just press the button. Commonly the handwheel is disconnect states with worm gear, when press handwheel in, it connects to worm gear and can drive the output drive and valve. O-ring for power off button keeps whole actuator IP67 weather proof, protect against dust and water. 100% underwater sealing test during production to make sure every actuator can meet IP67 sealing grade. Features • - 1/4 turn operation with mechanical limits • - Non ventilation heavy duty motor with overheat protection • - Corrosion resistances housing with rust passivation aluminum alloy and thermally bonded polyester coating • - Local button to cut off power when emergency issue happens for manual operation
