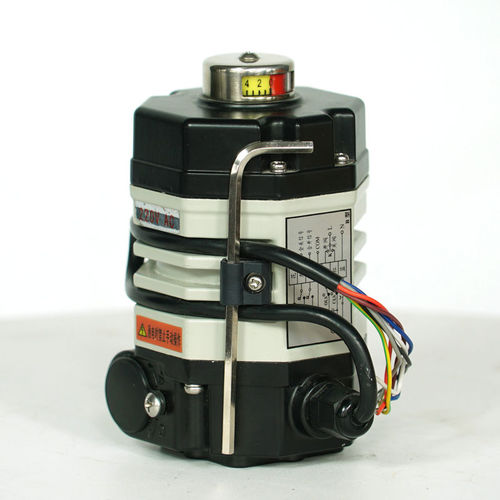

Motorized valve actuator DCL series
quarter-turnworm gearcompact

motorized valve actuator
motorized valve actuator
motorized valve actuator
Add to favorites
Compare this product


Characteristics

Type
motorized
Movement
quarter-turn
Technology
worm gear
Other characteristics
compact, for butterfly valves, aluminum, ball, rugged, anti-corrosion
Torque

Max.: 2,500 Nm
(1,843.91 ft.lb)

Min.: 18 Nm
(13.28 ft.lb)

Description

Detailed Product Description Name: - Motorized Quarter Turn Actuator - Power Supply: - 24VAC/110VAV/220VAC/380VAC/24VDC Feature: - 90° Operation, Middle Position Optional - Installation Angle: - 360° Standard Time/Torque: - 15S To 75S/18Nm To 2500Nm/160in.lbs To 22125in.lbs - Type: - ISO5211 Multi Flange Mounting Total Weight: - 1.2KG To 20KG - Motor Power: - 6W To 140W Ambient Temperature: - -25℃~+55℃ / -13°F~+131°F - Features • - 90° operation, middle position optional • - All 40Cr alloy spur gears, hard copper alloy worm gear, metal tapered roller bearings • - Permanent lubricated without maintenance for over 10000 full range life cycles • - Corrosion protection aluminum alloy housing with thermally bonded polyester coating • - Heavy duty motor with thermal overload protection • - Allen wrench manual override/handwheel optional • - Flat or dome indicator for valve position • - ISO5211 multi flange mounting • - CSA certified per UL standard/CE marked Description DCL electric actuators are compact but rugged to reach military industrial standard. All metal gears, housing and fully enclosed heavy duty squirrel-cage asynchronous induction motor make actuator can frequently run from open to close with super long life with constantly overload vibration. Not like actuators those may use plastic gears or bearings, DCL broad its applications to heavy industry field, even nuclear power plant and warship, where must be used very safely and stably. While also not like actuators with very huge volume or super weight that cost high, these small size actuators are also widely used for civil field with limit installation space and budget.
