Features
- 1-7r adjustable per valve stroke with double side torque limit protection
- DC brushless motor with rare earth material permanent magnet and current overload protection
- Torque closes valve and highly sealed in close position torque from 5Nm to 18Nm adjustable
- Rugged IP67 and type 4X with aluminum alloy enclosure
- Super mini volume smaller size than a cola can
- Manual override with Allen handle
- Two LED lights to confirm full open and close position of valve
- CE marked/RoHS 3.0 declared
Specification:
Type - DCL-MZZ
Power - DC24V
Motor Power - 20W
Rated Current - 1.1A
Standard Time/Torque - 18Nm
Optional Time/Torque - ╲
Turning Angle - 3r
Total Weight - 1.2Kg
Insulating Resistance - 100MΩ/250VDC
Withstand Voltage Class - 500VAC 1minute
Protection Class - IP67
Installation Angle - 360°at any angle
Electric Interface - 7-core cable for connection
Ambient Temperature - -25℃~+55℃
Fuse - 2A
Description

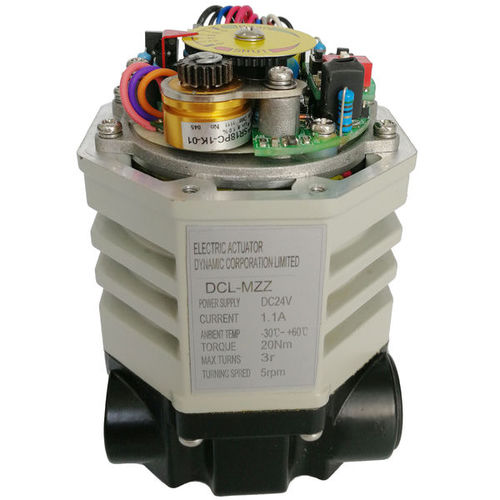

DCL-MZZ subminiature multi-turn type electric actuators are used to automate diaphragm valve or needle valve with size less than 2 1/2”. These valves have a not long linear stroke with turns less than 7r. MZZ actuator is powered only by 24VDC due to the DC brushless motor are used, to satisfy the high speed rotation and super torque in super small size.
The actuator can be controlled by continuous mode and inching mode. When actuator drive valve from open to close direction, torque become larger to make the DC motor’s current become higher, and finally stops motor by current overload protection. This is called torque closes valve, which can make sure tight sealing of valve.
