Features
- Turns and torque can be set to match with different size of diaphragm valve
- Heavy duty DC brushless motor provides large torque and high speed with small inertia force
- High pressure die cast aluminum alloy housing with external power coated
- IP 67/NEMA 4X sealing grade/weather proof for indoor and outdoor use
- Smart mini control board inside to provide over current protection
- Permanent lubricated gear drive without maintenance
- Double direction over torque protection
Description

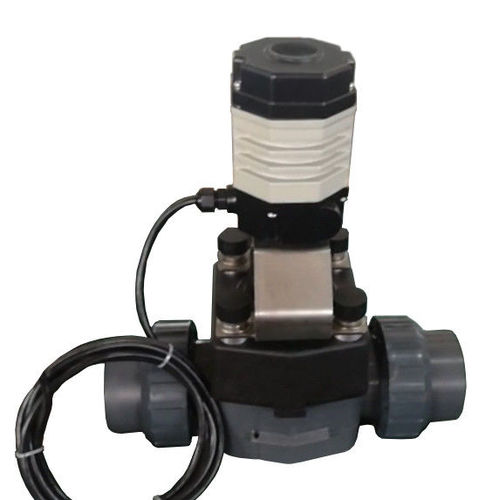

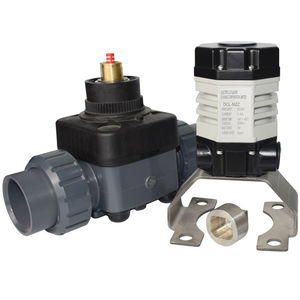

DCL-MZZ electric actuators can be used to motorize PVC diaphragm valves. PVC diaphragm valves are typically used for on-off control of abrasive or liquids with suspended solids and other media compatible with the materials of construction. Linear sealing motion provides linear flow control characteristics. Thus inching mode of actuator can be used to precisely control flow.
The double direction over torque protection function can prevent actuator over screwed the PVC valve. The over-torque shut off valve can make sure the valve sealing very well and open smoothly.
Specification:
Type - DCL-MZZ
Power - DC24V
Motor Power - 20W
Rated Current - 1.1A
Standard Time/Torque - 18Nm
Optional Time/Torque - ╲
Turning Angle - 3r
Total Weight - 1.2Kg
Insulating Resistance - 100MΩ/250VDC
Withstand Voltage Class - 500VAC 1minute
Protection Class - IP67
Installation Angle - 360°at any angle
Electric Interface - 7-core cable for connection
Ambient Temperature - -25℃~+55℃
Fuse - 2A
