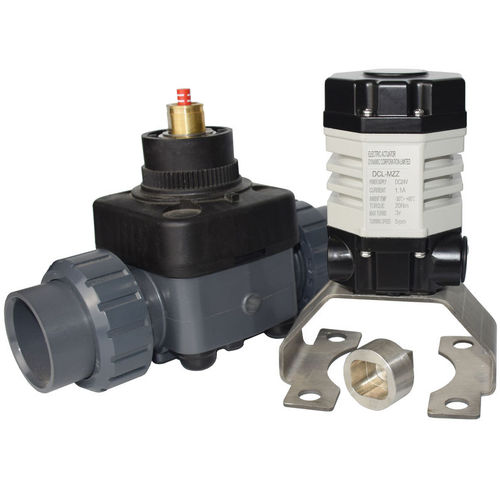

Electric valve actuator DCL-MZZ
multi-turnaluminumsmall

electric valve actuator
electric valve actuator
Add to favorites
Compare this product


Characteristics

Type
electric
Movement
multi-turn
Other characteristics
aluminum, small, for heavy loads, DC
Torque

Min.: 5 Nm
(3.69 ft.lb)

Max.: 18 Nm
(13.28 ft.lb)

Description

Features  - 3D design valve bracket for different sizes of linear stroke valves smaller than DN65  - Heavy duty rear earth permanent magnet DC brushless motor with duty rate 80%  - Super small size with aluminum alloy housing for protection from dust and water  - Thermal bonded polyester coating to protect against corrosion  - Manual override with Allen handle  - Maximum 7 turns can be set and adjusted flexible  - CE marked and tested by SGS Description DCL provide customized valve bracket design service for both quarter turn and multiturn valve. Automatic diaphragm valves or needle valves, are commonly actuated by pneumatic actuators or linear electric actuators, and integral designed with actuators. While for some manual valve that needs to upgrade to control valve, there is no need to change whole valve. DCL can help customer to design and manufacture a suitable valve bracket per valves’ CAD drawings. DC brushless motor’s speed is proportional to voltage and inversely proportional to output torque. Its output torque is proportional to current. So current value is used to precisely show real-time torque value and do over torque protection. This motor provides large start-up torque with strong overload capability. Permanent magnet rotor has lower temperature rise during operation than AC motor. Specification: Type - DCL-MZZ Power - DC24V Motor Power - 20W Rated Current - 1.1A Standard Time/Torque - 18Nm Optional Time/Torque - ╲ Turning Angle - 3r Total Weight - 1.2Kg Insulating Resistance - 100MΩ/250VDC Withstand Voltage Class - 500VAC 1minute Protection Class - IP67 Installation Angle - 360°at any angle Electric Interface - 7-core cable for connection Ambient Temperature - -25℃~+55℃ Fuse - 2A
