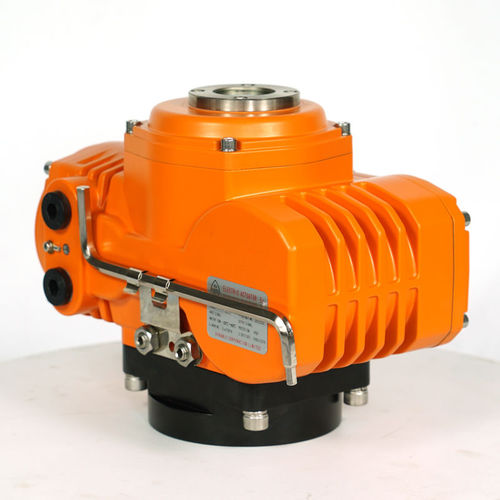

Electric valve actuator DCL-Ex10

rotaryexplosion-prooffor chemical applications

Detailed Product Description Power: - DC24V/AC24V/AC110V/AC380V/AC220V - Standard Time/Torque: - 30S/100Nm Explosive-proof Grade: - Exd IICT4 - Protection Class: - IP67 Ambient Temperature: - -20℃~+60℃ - Motor Power: - 15W/25W Medium: - Gas/Oil/Water/Other - Material Of Seal Surface: - Soft Sealed Rated Current: - 0.10A~2.2A - Connection Form: - Flange Application DCL series electric actuator is widely used in the industrial field, such as petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and the automation system for the building, and is fully in customers' good graces and trust-worthy. Many customers in various industrial lines with their practice over the years confirm that DCL series products of electric actuator present outstanding in reliability, durability and after-sale service, as well as in quality. Features: • - Power: DC24V/AC24V/AC110V/AC380V/AC220V • - Explosive-proof Grade: Exd IICT4 • - Ambient Temperature: -20℃~+60℃ • - Medium: Gas/Oil/Water/Other • - Rated Current: 0.10A~2.2A • - Standard Time/Torque: 30S/100Nm • - Protection Class: IP67 • - Motor Power: 15W/25W • - Material Of Seal Surface: Soft Sealed • - Connection Form: Flange
