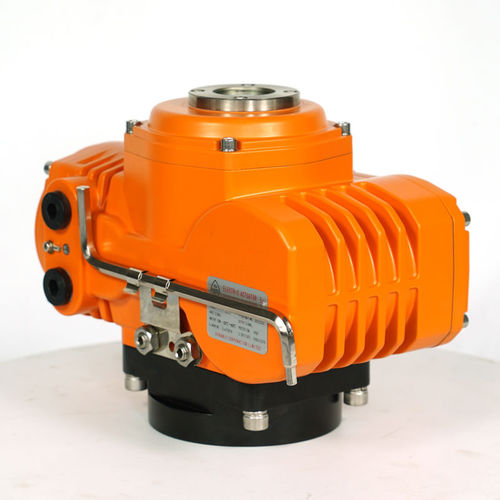

Compact structure motorized valve actuator with anti-explosion certificate and ISO5211 direct installation type
Dynamic Corporation Limited is a stock holding/high-tech enterprise with self-support export authority, which is engaged in research, development, manufacture and sale for electric actuator, electric valve and its automatic control system. The main leading product, DCL series electric actuator is featuring the compact construction, exquisite appearance, smart control, remarkable performance, superior quality, easy operation and so on.
Application
DCL series electric actuator is widely used in the industrial field, such as petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and the automation system for the building, and is fully in customers' good graces and trust-worthy. Many customers in various industrial lines with their practice over the years confirm that DCL series products of electric actuator present outstanding in reliability, durability and after-sale service, as well as in quality.
Product specification
Power - 24VDC 110VAC 380VAC 220VAC
Motor power - 25W/40W/30W/40W
Rated Current - 3.12A/0.63A/0.19A/0.35A
Standard time/Torque - 60s/20Nm(for DC24V) 30s/200Nm
Optional Time/Torque - 30s/100Nm 15s/100Nm 60s/200Nm
Turning Angle - 0~90° Adjustable
Avaliable Control Circuit - Types of A,B,C,D,E,F,G,H
Total weight - 5.5kg
Explosive-proof grade - Exd II CT4Gb
Installation angle - 360° at any angle
Electric interface - 2-M20*1.5 explosion-proof plug,clients should install corresponding explosion-proof cable connector when using according to the cable selected.
