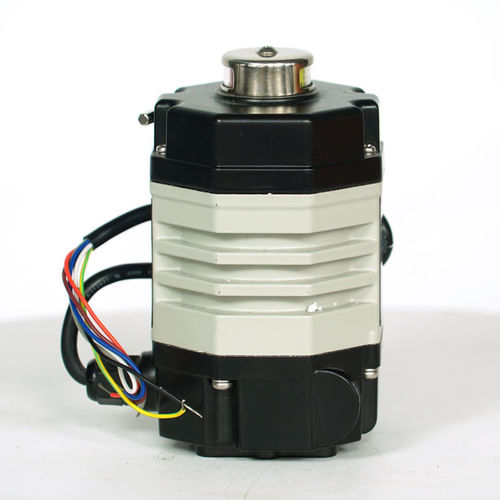

Compact valve actuator DCL-02

electric90°for butterfly valves

Detailed Product Description Power: - DC24V/AC24V/AC110V/AC220V - Time/Torque: - 15S/18Nm Optional Torque: - 7s/9Nm 60s/18Nm - Protection Class: - IP67 Motor Power: - 8W/6W - Ambient Temperature: - -25℃~+55℃ Medium: - Gas/Oil/Water/Other - Material Of Seal Surface: - Soft Sealed Rated Current: - 0.15A~1.3A - Connection Form: - Flange Description DCL-02 series is widely applied in various automatic operation systems, such as: level, flow, pressure control, air-conditioning systems, fire fighting systems, water treatment systems, and applied to equipment, chemical industry and food machineries. It is matched with butterfly valves with diameter less than DN40 and ball valves with diameter less than DN32. It is suitable for many kinds of installation conditions with its super miniature in volume and any installation angle within 360. Features • - Subminiature in Volume(Smaller than a pop Can) • - Super Torque (18Nm/15S) • - Super Protection Performance (Full Aluminum alloy Casing) • - Can choose open display device of adjustable convex type • - IP68 water-proof cable connector • - Mannual operation handle
