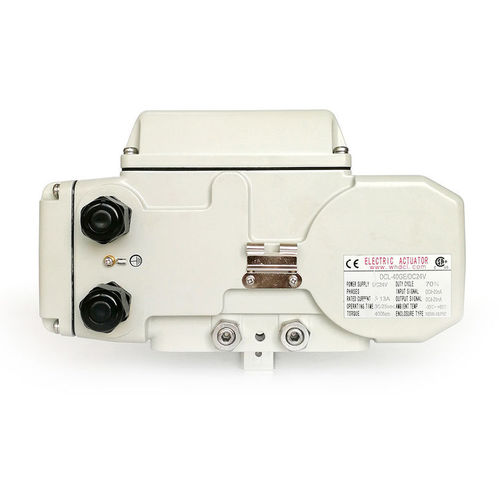

Electric valve actuator DCL GE series

90°aluminummodulating

Detailed Product Description Power Supply: - 24VAC/110VAV/220VAC/380VAC - Motor Power: - 6W To 140W Standard Torque: - 50Nm To 2500Nm - Output Signal: - 4-20mADC Input Signal: - 4-20mADC/1-5VDC/2-10VDC - Standard Time: - 20S To 75S Protection Grade: - IP67 NEMA4/4X - Total Weight: - 1.2KG To 20KG Ambient Temperature: - -25℃~+55℃ / -13°F~+131°F - Installation Angle: - 360° Features  - 90° turn with proportional to input control signal  - Self-calibrating with continuously output position monitoring signal as standard  - All metal gear train with self-locking bronze alloy worm gear  - Watertight IP67 and NEMA 4X aluminum alloy enclosure with 100% underwater tests  - World-leading EMC, 100% passed EFT, ESD and Surge tests  - Stable operation on extra high/low temperature with high humidity  - Full potted resin plastic packaged controller to protect electronics from vibration and moisture  - Fail safe drive to any setting position when input signal loses  - CSA listed/UL complied/CE marked/RoHS 3.0 tested Description DCL-E modulating type electric actuators are fail-safe. When control signal loses or mistaken input beyond certain range(4-20mA/2-10V), and power is still on, actuator can drive valve to any position that has been set before, such as full open or full close position. Self-locking function can also prevent back driving and hunting when power lose. These functions can keep whole control system safe when malfunction happens. All actuators are rigorous tested and certified by CSA per UL and CSA standard, tested by SGS per CE and RoHS 3 standard.
