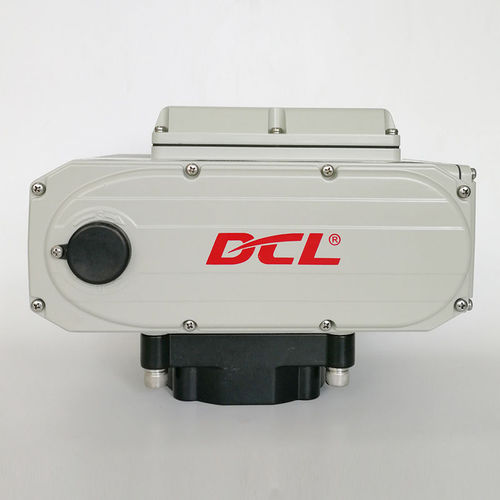

Motorized valve actuator DCL-H series

quarter-turnworm gearaluminum

Detailed Product Description Standard Torque: - 50Nm To 2500Nm/442in.lbs To 22125in.lbs - Standard Time: - 20S To 75S Power Supply: - 380VAC/440VAC - Installation Angle: - 360° Total Weight: - 2.5KG To 20KG - Motor Power: - 6W To 140W Ambient Temperature: - -25℃~+55℃ / -13°F~+131°F - Protection Grade: - IP67 NEMA4/4X Features  - Quarter turn operation with mechanical limits  - Modulating type available with electric positioning system  - Class F insulating heavy duty motor with thermal overload protection  - Rugged IP67 hard die cast aluminum alloy enclosure/100% underwater test  - Two auxiliary limit switches to confirm valve position  - Visual valve position indicator, flat or convex available  - Emergency local power off button optional  - Self-locking all metal gear with soft nitriding treatment  - CSA certified per UL and CSA standard/CE/RoHS 3.0 Description DCL-H series actuators are powered by 3 phase 380VAC or 440VAC, 50Hz/60Hz. Commonly used in heavy industry, such as power plant and steel plant. To ensure safety, motor is Class F insulating. All metal gear train with self-locking bronze alloy worm gear make actuators can drive over 10000 times full range life cycles with rated load. The motor is automatically stopped by internal cams striking limit switches and output a full open dry contact signal. Actuators are rigorous tested by CSA per UL and CSA standard, tested by SGS per CE and RoHS 3 standard.
