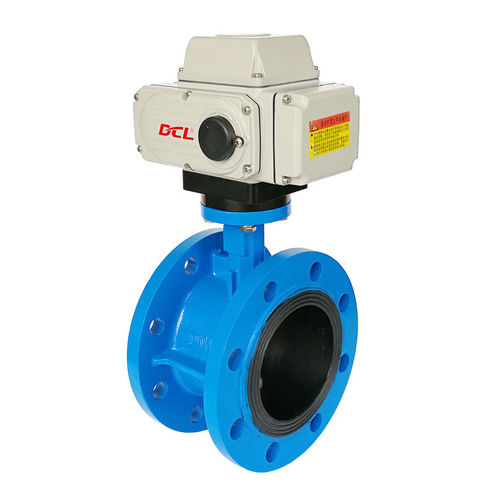

Butterfly valve

electrically-operatedshut-offflange

DC24V Al-Alloy Material on-off electric butterfly Valve, electric actuator with Ce/CSA/RoHS Certificate Features: Name: On-off Electric Butterfly Valve Standard Time/Torque: 20S/50Nm Motor Power: 13W/10W/6W Rated Current: 0.07~1.5A Power: DC24V/AC24V/AC110V/AC380V/AC220V Protection Class: IP67 Material Of Seal Surface: Soft Sealed Connection Form: Flange Product specification Power - 24VDC 24VAC 110VAC 220VAC 380VAC Motor power - 13W/10W/10W/6W/10W Rated Current - 1.28A/1.50A/0.24A/0.07A/0.16A Standard time/Torque - 20s/50Nm Optional Time/Torque - 4s/20Nm 10s/30Nm 100s/50Nm Turning Angle - 0~90° Adjustable,0~360° Adjustable Avaliable Control Circuit - Types of A,B,C,D,E,F,G,H Total weight - 2.5kg Protection Class - IP67 Installation angle - 360° at any angle Electric interface - Two G1/2 water-proof Cable connectors, one for power line and one for signal line Ambient Temperature - -25℃~+55℃ Optional Fuction - Dehumidify Heater/ Dome indicator
