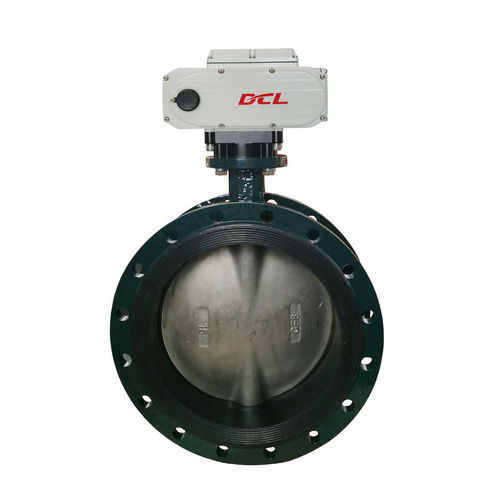

Butterfly valve DCL-100electrically-operatedshut-offfor water
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- electrically-operated
- Function
- shut-off
- Media
- for water, for oil, for gas
- Body
- flange, waterproof
- Other characteristics
- ISO, modulating
- DN
600 mm
(23.622 in)- Temperature
Max.: 55 °C
(131 °F)Min.: -25 °C
(-13 °F)
Description
120W Electric butterfly valve actuator with ISO 5211 direct installation for valve under DN300
specification
Model - DCL-100
Power - 110VAC/220VAC/380VAC
Motor power - 120W/120W/90W
Rated Current - 1.93A/0.94A/0.44A
Standard time/Torque - 30s/1000Nm
Optional Time/Torque - 15s/500Nm
Turning Angle - 0~90° Adjustable
Avaliable Control Circuit - Types of A,B,C,D,E,F,H
Total weight - 19kg
Protection Class - IP67
Installation angle - 360° at any angle
Electric interface - Two G1/2 water-proof Cable connectors, one for power line and one for signal line
Ambient Temperature - -25℃~+55℃
Optional Fuction - Over-torque Protector/Dehumidify Heater/ Dome indicator/Handle
