Butterfly valve

electrically-operatedfor oilfor acids

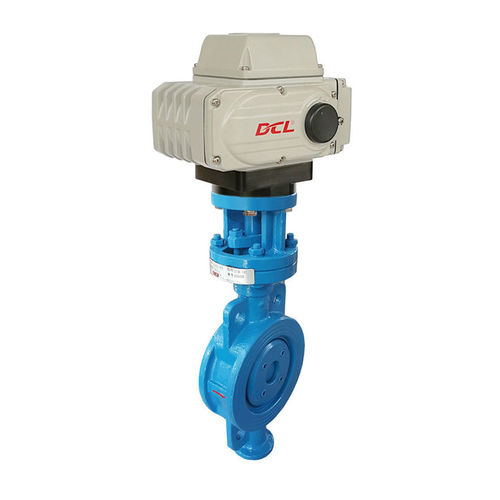

Electric actuated triple eccentric hard (metal) seal butterfly valve / perfect seal Features Hard seal valve  - Triple eccentric and low torque design  - Stem design: Available in square shaft for easy mounting of actuators  - Top flange: Conforms to ISO 5211 direct mounting for actuators  - One piece shaft: Maintains disc position.  - Blow-out proof shaft  - Bushings: High performance PTFE bushings provide correct alignment of shaft through the body and reduces torque.  - Stem seal: Positive seal in both directions to prevent leakage. Electric actuator  - Quarter turn operation, middle position optional  - Self-locking worm gear makes actuator stays in its last position when power lose  - Heavy duty motor with thermal overload protection  - Potentiometer or position transmitter optional to feedback valve position  - Visual valve position indicator  - PTC electronic heating component optional for anti-condensation  - Local emergency power off button optional  - Manual with Allen wrench or handwheel  - CSA certified per UL standard/CE marked Description DCL electric hard seal butterfly valves are widely used for high pressure, high temperature and high corrosion medium. Engineered with a bi-directional zero leakage seat with an emphasis on low operating torque, this high performance valve is ideal for many projects. So the hard seal valves are commonly used for steam, gas supply, oil, acid and alkali environments.
