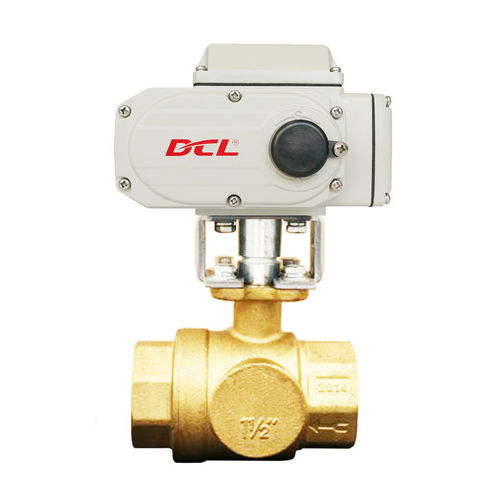

Ball valve

electrically-operatedfor waterfor oil

Electric actuated lead-free brass ball valve / size from 1/4” to 2 1/2”/ PTFE port seats Features Features Brass ball valve  - 2-piece pressed brass design  - Thread type and flanged type ends available  - Pipe pressure PN from 0.4Mpa to 1.6Mpa, 60psi to 240psi optional  - Size from 1/4” to 2 1/2”  - High platform ISO 5211 direct mounting  - PTFE soft seal  - Full passage, with packing gland  - Blowout proof stem design Actuator  - Heavy duty AC motor for 24VAC/110VAC/220VAC, with thermal overload protection  - Rear earth material permanent magnet DC brush motor for 24VDC, with thermal overload protection  - All metal gear trains self-locking at any position  - Rugged IP67 high pressure die cast aluminum alloy housing with powder coated  - Standard 90° operation with mechanical limits  - Standard ISO5211 multi flange mounting  - Two auxiliary limit switches to confirm valve position, no additional brake needed  - Manual override with wrench or handwheel  - Visual position indicator, flat view or convex view available  - CSA certified per UL and CSA standard/CE marked/RoHS 3.0 tested Description DCL electric lead-free brass valves can be used for water heating, heating oil, grease, diesel oil, lubricant oil, fuels with high benzene content, acid and weak lye, alkalis, solvent, paints, dyes etc. Also suitable for heating water mixtures containing glycol. Brass valves are lighter weighted than stainless steel valves but have better corrosion resistance. While because brass valves are more expensive while the material is softer than carbon steel or stainless valves, so the size of brass valve can not be very large.
