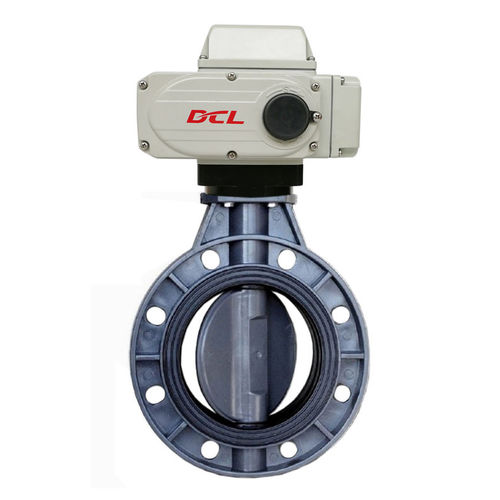

Butterfly valve

electrically-operatedfor controlisolation

Industrial grade butterfly type electric actuated PVC control valve Description DCL electric PVC butterfly valves are used as Isolation valves and control valves of following applications, such as chemical processing, water treatment, water features, fountains, aquariums, landfills, swimming pools, power plants, mining, transportation. Commonly used with PVC pipe with low pressure applications. Features PVC butterfly valves  - Size from DN40 to DN300, 1-1/2” to 12”  - Body material: PVC or PP(Polypropylene)  - Disc material: PP(Polypropylene), PVC  - Seat material: EPDM  - Stainless steel 316 stem/shaft  - Top ISO 5211 flange mounting  - ANSI 150 wafer style connection standard, flange type optional  - Non-wetted stem and body - Isolated from the media  - Rated pressure 1Mpa, 145psi at 25℃,77F Electric actuator  - 1/4 turn operation with mechanical limits  - All bronze alloy worm sector gear is very durable and resistance to high force friction  - Over 10000 time full open and close life cycles with full rated load with duty rate 80%  - Corrosion protection robust aluminum alloy with thermally bonded polyester coating  - Visual valve position indicator  - Two electric limit switches to confirm valve position, no additional brake required  - Allen handle manual override  - CSA listed/UL complied/CE marked/RoHS 3.0 tested
