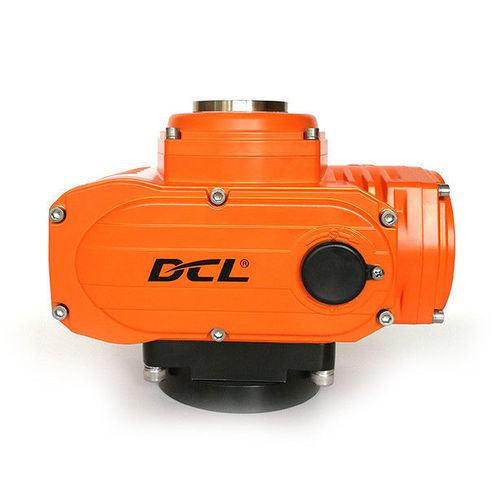

Electric valve actuator DCL-GE series
quarter-turncompactaluminum

electric valve actuator
electric valve actuator
electric valve actuator
Add to favorites
Compare this product


Characteristics

Type
electric
Movement
quarter-turn
Other characteristics
compact, aluminum, modulating, explosion-proof, smart, DC
Torque

Max.: 600 Nm
(442.54 ft.lb)

Min.: 0 Nm
(0 ft.lb)

Description

Detailed Product Description Action Time: - 15S/30S - Output Torque: - 0~600Nm Input Signal: - 4-20mADC - Output Signal: - 4-20mADC Power Supply: - 24VDC - Installation Angle: - 360° Motor Power: - 30W/70W - Total Weight: - 4.5KG/9.5KG Ambient Temperature: - -25℃~+55℃ / -13°F~+131°F - Protection Grade: - IP67 NEMA4/4X Water hammer phenomenon avoidable DC rotary actuator / modulating type Features  - Quarter turn operation modulated by 24VDC power  - Torque can be precisely setting within a certain range by control pack  - Heavy duty DC brushless motor with low temperature rise during production  - Torque test control and over torque protection by current  - Compact smart resin plastic packaged drive controller  - Weatherproof IP 67 robust aluminum alloy enclosure with powder coated  - Manual override with Allen wrench or handwheel  - Standard ISO5211 multi flange valve mounting  - UL standard/CSA listed/CE marked/RoHS 3 complied Description Water hammer phenomenon is a pressure surge or wave caused when a fluid, usually a liquid but sometimes also a gas, in motion is forced to stop or change direction suddenly. This phenomenon commonly occurs when a valve closes suddenly at an end of a pipeline system, and a pressure wave propagates in the pipe. DC brushless motor equipped actuator can be used to lighten water hammer phenomenon when closing valve, Because DC brushless motor start from a very low speed with large torque, and gradually accelerate to normal speed. This can also reduce start-up current to extend life span. Dehumidify heater is optional to protect actuator against condensation. Actuators are Actuators are tested to rigorous UL and CSA standards and certified by CSA.
