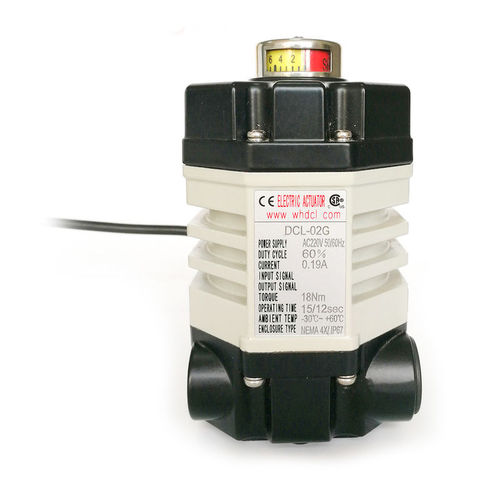

Electric valve actuator DCL-02G

quarter-turnaluminumrugged

Detailed Product Description Standard Time/Torque: - 15S/18Nm - Optional Time/Torque: - 7S/9Nm 60S/18Nm Total Weight: - 1.2KG - Power Supply: - 24VDC / 12VDC Optional Motor Power: - 8W - Ambient Temperature: - -25℃~+55℃ / -13°F~+131°F Installation Angle: - 360° - Protection Grade: - IP67 NEMA4/4X DC rotary actuator / motor with permanent rotor / very low temperature rise Description DCL-02G is widely used in high security industry sites with safety power 24VDC or 12VDC, that can guarantee field workers will not get the risk of high voltage electric shock. The rare earth material magnet in motor has much stronger magnetism than normal ferrite magnet, which can provide higher torque in smaller volume. Moreover, this motor’s robustness is perfect to avoid the commonly seen problems of most DC motors, such as speed is lower when load is higher, or speed is higher when load is lower. Thus, actuator can operate in a smooth speed when load vibration and the temperature rise is very low. Actuators have been rigorous tested by CSA and certified per UL and CSA standard. In chemical and food & beverage industry, the fluid needs to be controlled very fine, so the actuator start frequency is very high. 1200 times/hour can reach world leading level and can meet requirements of above industries. Features  - Quarter turn standard, turning angle smaller than 360° optional  - Torque can be precisely setting within a certain range  - Heavy duty DC brush motor with lower temperature rise, longer life, provide high start torque and very small inertia force  - IP 68 watertight robust aluminum alloy enclosure, protection against dust and water
